We are Manufacturer, Supplier, Exporter, Trader of Bag Handling Systems from Kolhapur, Maharashtra, India.

Bags Belt Conveyors ( Slat Type Belt Conveyors ) ( Portable Belt Conveyors ) :

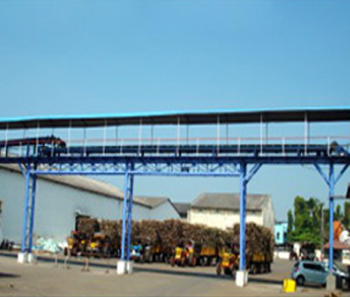

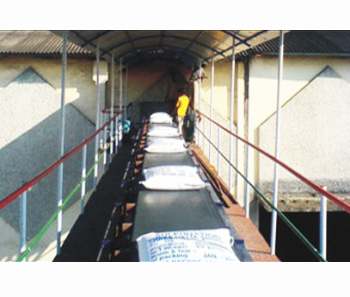

Bags Belt Conveyors
Bags Belt Conveyors
Bags Belt Conveyors
Bags Belt Conveyors

50 feet, 30 feet and 20 feet lengths.

M.S. Fabricated frames out of M.S. Angles and steel tubes. Steel structure of the conveyor frames are designed to the full load. For the 50 feet length Belt Conveyors steel structure will be 2" OD `B' Class tube with 35 X 35 X 5 and 25 X 25 X5 angle. For 30 feet and 20 feet length belt conveyors steel structure will 1.5" OD `B' Class tube with 35 X 35 X 5 and 25 X 25 X 5 angle.

  • The Rubber Endless belt of size 650 mm width, l0 mm thick, 3 / 4 ply, 3mm top and 1.5mm bottom rubber cover.
  • Nylon fabric, M - 24 grade, ( I.S. 1891 ) ISI Standard

Idlers Rollers will be out of 76.2mm OD tube with 6203 bearings and oil seal permanently greased and dust proof. The distance between carrying Idlers will be 610mm and returning Idlers will be 2500mm.

  • 50 feel length 250 mm and 300mm dia X 700mm long.
  • 30 & 20 feet length 200mm and 250mm dia X 700mm long.
  • Each conveyor will be provided with pneumatic ADV tyre wheels for easy moment.
  • 50 feet length - ADV 600 x 19
  • 30 feet length - ADV 500 x 19
  • 20 feet length - ADV 500 x 19
  • It consists of Kirloskar / Siemens / Crompton or Standard make
  • Electric Motor and Shanti / Radicon / Elecon make gear boxes.
  • 50 feet length-Motor 3 H.P, A-337 or 3.54'' Reduction Gear Box
  • 30 feet length-Motor 2H.P, A-287 or 3'' Reduction Gear Box
  • 20 feet length-Motor 2H.P, A - 287 or 3'' Reduction Gear Box

Approx. speed of the conveyor belts will be about 82 feet per minute.

Conveying capacity of the Belt Conveyor units will be about 750 to 800 bags per hour.

Each conveyor will be provided with side skirt of M.S. plate with necessary brackets for initial guide.

Each conveyor will be provided with screw type take up for correct adjustment of Belt tension.

  • Only Electric Motor and suitable starter will be provided by us.
  • Required switches, cables and plugs points to be provided by the factory scope

Steel structure of the conveyor will be painted with one coat of Red oxide Metal Primer and one coat of ink Blue paint or as per requirements.

Above lengths of the Belt Conveyors are standard lengths or as per customer requirement.
